split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices

Tianjin Grewin Technology Co., Ltd
Contact Now
    Buy cheap split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices from wholesalers

    Buy cheap split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices from wholesalers
    • Buy cheap split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices from wholesalers

    split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices

    Ask Lasest Price
    Brand Name : grewin
    Model Number : GWCTSB
    Certification : CE,ROHS,ETL
    Price : USD 75
    Delivery Time : 20days
    Payment Terms : TT L\C and other payments
    • Product Details
    • Company Profile

    split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices

    1.We have abtained SGS Audit Supplier in China andVDE,ETL, CE,ROHS, ISO9000 Approal.Always insist on: Quality is the soul of our corporation.

    split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices


    2.The following is our detailed information of our 100/5 150/5 200/5 250/5 300/5 DC current tranducer/split core current transformer for current monitoring

    GWCTSB Series Split Core Current Transformer (Specifications)

    Rated Primary current

    100-5000Aac

    Rated Secondary current:

    5 or 1Aac

    Rated load

    1, 2.5, 5.0, 10, 30VA

    Accuracy

    0.5, 1.0, 3.0 Class

    Rated Short-time thermal current (Ith)

    20In

    Rated Dynamic current (Idyn)

    2.5Ith

    Case Material

    UL flame retardant rating 94-V0

    Highest Voltage for Equipment Um (rms)

    720 Vac

    Rated Power-Frequency Withstand Voltage(rms)

    3,000 Vac

    Frequency Range:

    50/60Hz

    Operating Temperature

    -15℃ to 50℃

    Standard

    IEC 60044-1

    Accessories

    Supplied with feet for base mounting if required

    Certification

    RoHS compliant CE&ETL approved

    GWCTSB Series Split Core Current Transformer (Features)

    Low cost

    5 standard sizes

    Split core design, safer, easier installation, and portable

    GWCTSB Series Split Core Current Transformer (Applications)

    Current, power, energy, monitoring devices

    Relay protection devices

    Power Factor Correction devices

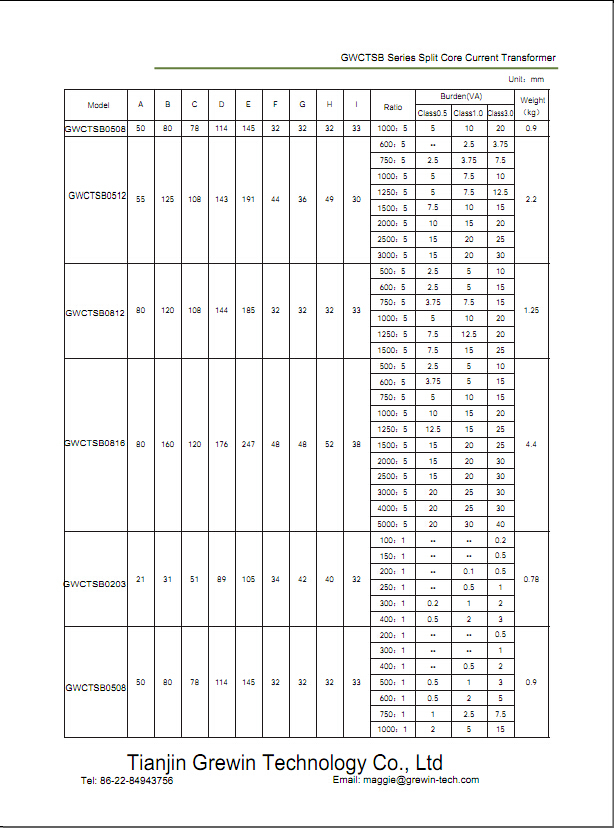

    3.The following is our catalog of split core current transformers.

    split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices

    split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices

    split core current tranducer/split core current transformer100:5A 150:5A 250:5A 200:1A for monitoring devices

    4.WHY CHOOSE US?

    WHY CHOOSE US?

    Quality and honest first!

    A. Flexible service for diffierent transformers with high efficiency performance.

    B. Over 40 years experience of transformer designing and producing.

    C. 100% test of every single product we produce from incoming material checking.

    D. UL, CE, ROHS, ISO9001:2008

    E. We offer custom-made transformers, OEM and ODM are welcome

    F. We deliver the quality you expect at consistently competitive prices

    G. Transformer quality lifetime:10 Years.

    H. Specialty Sales service:5 -10 Years
